Overview
This post will assist users on building the WSJT-X application on Raspberry Pi 5.
Download Source

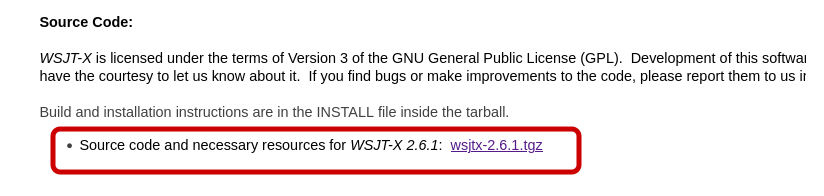

Navigate to https://wsjt.sourceforge.io/wsjtx.html and click the link for the Source Code.

Unzip the Tar
The command to extract.
tar -xvf <filename.ext>
Here is an example using the actual file.
tar -xvf wsjtx-2.6.1.tgz

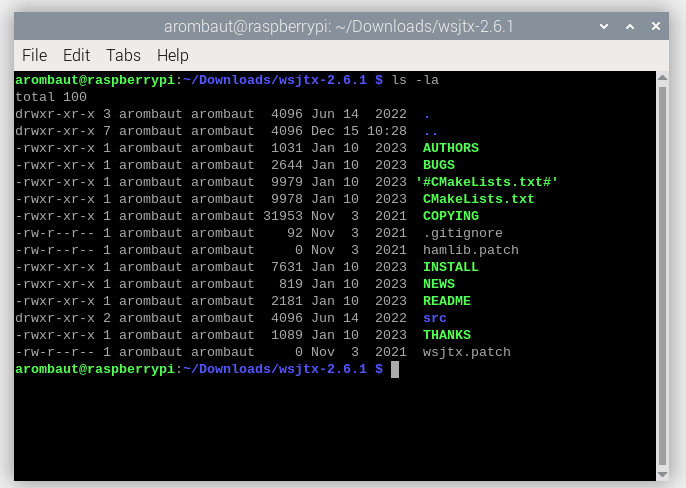

From the command line, change into the wsjtx directory and list the files.

Install Prerequisites
sudo apt install -y build-essential gcc g++ gfortran cmake git asciidoc asciidoctor texinfo qtmultimedia5-dev libqt5serialport5-dev libqt5multimedia5-plugins qttools5-dev qttools5-dev-tools libboost-all-dev libfftw3-dev libreadline-dev libusb-1.0-0-dev libudev-dev portaudio19-dev fonts-font-awesome fonts-open-sans hamradio-files libhamlib-utils libqcustomplot-dev
Building
Navigate to the a directory where you want to stage the build files. I tend to use the /Download/software-i-am-building
directory.
mkdir build
cd build
cmake -DWSJT_SKIP_MANPAGES=ON -DWSJT_GENERATE_DOCS=OFF ../
cmake build .
sudo cmake --build . --target install
The application will be installed to /usr/local
.
Run
From the command line.
wsjtx

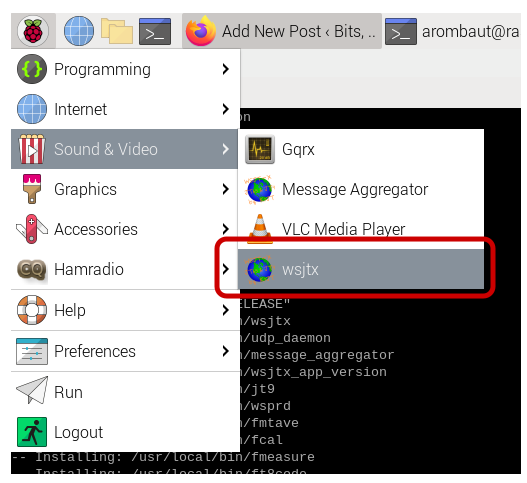

From the Graphical User Interface (GUI)

Conclusion
Hopefully this helped you install WSJT-X from source.
